LED Elevated Runway Guard Light
LED Elevated Runway Guard Light

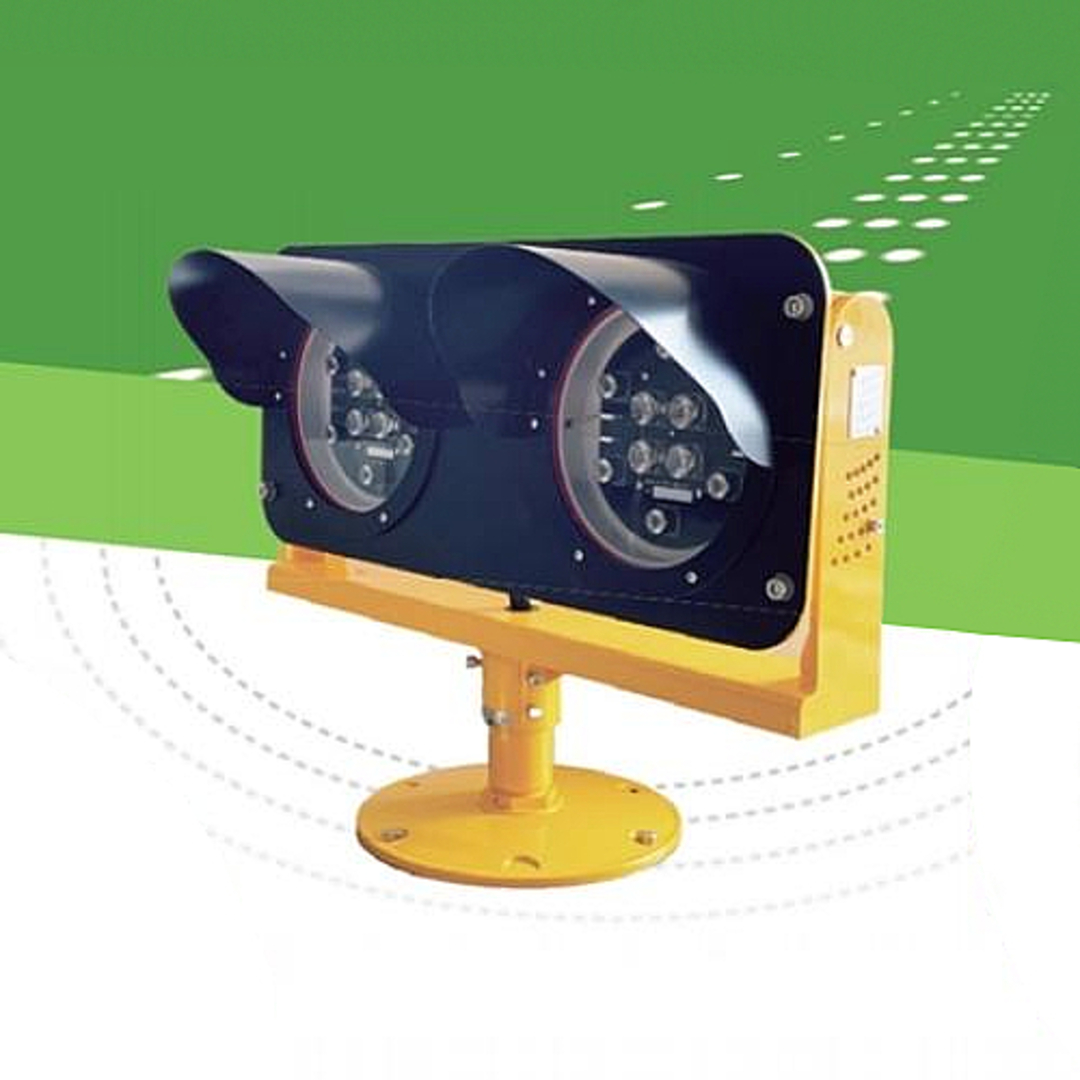

RG/E-YY(L) - Elevated Runway Guard Light
Technical Data
Operating Temperature: - 55°C~+55°C
Humidity: 0~100%
Protection Class: IP67
Power Factor: >0.98
Connection: FAA L-823
Emission: IEC 61000-6-4
Power Consumption: 20 VA
Features
- Adaptable to all kinds of CCRs
- Aluminum alloy light body supported by stainless steel structure, coated with anti-UV material
- Black front plate equipped with visors to maximize the contrast between the on and off states
- 0-20° elevation adjustable through pre-made screw angle setting holes.
- Built-in surge protection
- Specially designed fail open system suitable for strong magnetism,vibration and other environments
Compliance
- I.C.A.O. - ANNEX 14 Vol 1
- E.A.S.A. - CS-ADR-DSN
- I.E.C. - TS 61827
- F.A.A. - AC 150/5345-46 - EB NO. 67
- N.A.T.O. - STANAG 3316
- CANADA - TP 312
- C.A.A.C – AC 137-CA-2015-01-R1
- C.A.A.C – AC 137-CA-2015-03-R1
